ESP32 Pinout, Datasheet, Features & Applications
11 Nov 2025 15:29:14 GMT
Tyson From www.hycxpcba.com
Many embedded companies have used ESP32-WROOM-32 and designed different
ESP32 development boards, which are plug-and-play modules and
are thus normally used for learning and prototyping purposes.
Discover moreIoT project kits
theengineeringprojects
Applications
Arduino
Microcontrollers
Embedded systems textbooks
ESP32 development boards
THE ENGINEERING PROJECTS
Integrated circuit
applications
One of the most commonly used ESP32 development boards is called ESP32-DevkitC.
ESP32-DevKitC is a 30-pin ESP32-based development board, designed by Espressif Systems and is used in embedded and IoT projects.
esp32, esp32 pinout, esp32 chip, esp32 wifi module, esp32 basics, esp32 featues
Home automation kits
All you need to do is plug this device using a USB cable and play with it on the fly.
ESP32 project kits
Soldering station tools
Microcontroller programming courses
Arduino IDE software
THE ENGINEERING PROJECTS
IoT project templates
ESP32-DevKitC-32E
Sensor modules DHT11 BMP280
esp32
ESP32 beginner tutorials
Boot mode and Reset buttons are incorporated on the board.
USB micro connector and USB-UART Bridge, and LDO regulator are also included in the device.
Types of ESP32 Development Boards
The following are the five different versions of ESP32-DevKitC.
ESP32-DevKitC-32E
ESP32-DevKitC-32UE
ESP32-DevKitCVE
ESP32-DevKitCVIE
ESP32-DevKitCS1
ESP32 low power
So, that was the evolution of ESP32 from a simple IC to plug & play board. Now let's have a look at the Pinout of the ESP32 microcontroller and modules:
ESP32 Pinout
We have seen above that ESP32 has evolved first into ESP32-WROOM-32 and is further upgraded into ESP32-DevKitC. So, let's have a look at the pinout of all these boards, one by one:
Pinout of ESP32 IC
ESP32 IC in its pure form consists of 48 pins in total.
Discover more
ICs
IoT project kits
WiFi module sales
ESP32 low power
Integrated circuit components
Applications
Servo motors
Integrated circuit
esp32
Power supplies 3.3V 5V

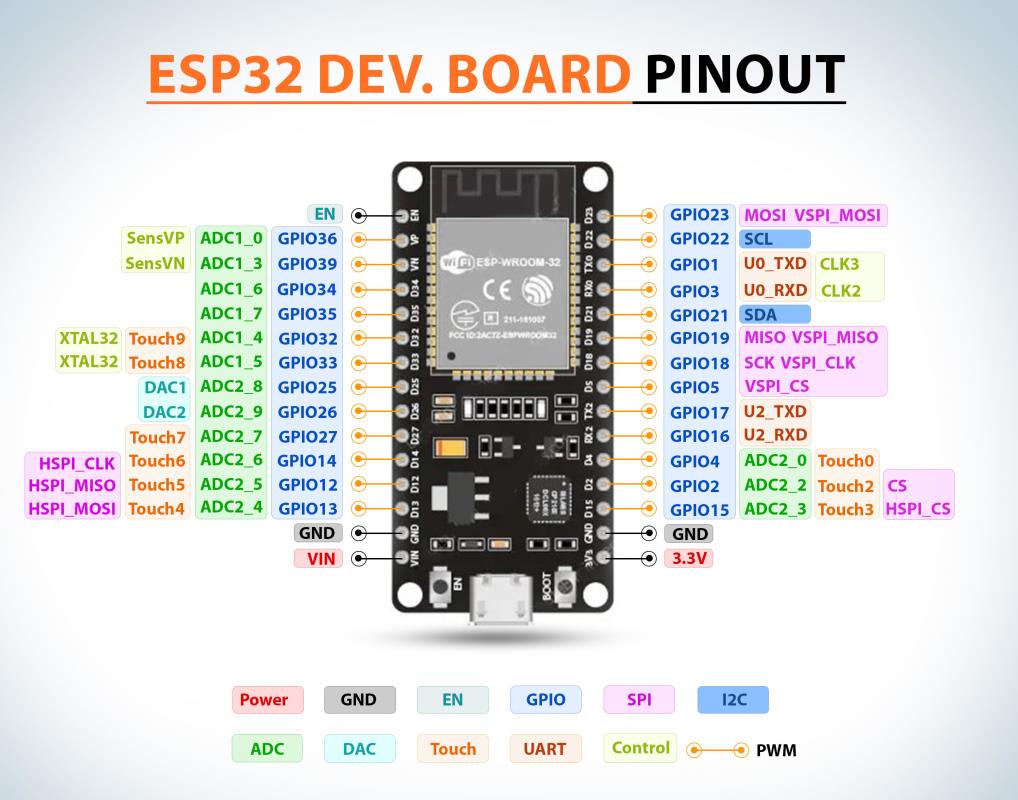

The following figure shows the labeled ESP32 Pinout diagram:
WiFi module sales
esp32, esp32 pinout, esp32 chip, esp32 wifi module, esp32 basics, esp32 featues
Pinout of ESP32-WROOM-32
ESP32-WROOM-32 is a breakout board of ESP32 and consists of 38 pins in total.
Discover more
Breadboards jumper wires
Microcontroller project ideas
Microcontroller programming course
Servo motors
PCB design services
Espressif ESP32-DevKitC-32E Printplaat voor ontwikkelaars ESP32-DevKitC-32E
Pinout reference guides
Application software
ESP32 project kits
USB cables micro USB
Here's the pinout of the ESP-WROOM-32 board:
ESP32 pinout posters
esp32, esp32 pinout, esp32 chip, esp32 wifi module, esp32 basics, esp32 featues, esp32-wroom-32, esp32 wroom 32 pinout
Pinout of ESP32-DevkitC
ESP32-DevKitC is a development board based on the ESP32 microcontroller and it has 36 pins in total.
Discover more
Electronics components
Integrated circuit
ESP-NOW communication modules
Pinout reference guides
Microcontroller
Microcontroller programming courses
ESP32 pinout posters
PCB design services
Breadboards jumper wires
ESP32
Here's the pinout diagram of ESP32 DevKitC:
ESP32 low power
esp32, esp32 pinout, esp32 chip, esp32 wifi module, esp32 basics, esp32 featues
ESP32 Pin Description
Now, let's have a look at the functions of ESP32 Pinout:
Power Pins in ESP32
Power: Power is applied through Micro-USB, 3.3V pin, 5V pin, and GND. Regulated 5V is supplied to this pin which is further regulated to 3.3V
to power up the board. And 3.3V pin directly supplies the 3.3V regulated to the board. And the ground is connected to GND.
Discover moreTHE ENGINEERING PROJECTS
ESP32 datasheet access
Applications
ESP32 low power
USB cables micro USB
Arduino IDE software
Microcontroller programming courses
Cloud IoT solutions
ICs
ESP32 tutorial guides
Enable: The enable pin is represented by ‘En’ on the board and is used to reset the microcontroller.
AREF: It is marked as AREF which is used to provide a reference voltage for input voltage.
Microcontroller programming course
GPIO Pins in ESP32
ESP32 has 36 GPIO(general purpose input/output) pins to perform numerous operations(normally one at a time). Third-party ESP32 modules have different numbers of GPIO pins i.e. ESP32 Dev Kit V1 includes 30 GPIO pins. Let's have a look at the functionality of ESP32 GPIO Pins:
ADC Pins in ESP32
ADC Pins: ESP32 has a total of 18 ADC channels(12-bit each) used to measure the analog voltage within the range of 0-3.3V.
ESP32 is equipped with two SAR analog-to-digital converter modules named ADC1 and ADC2. ADC1 has 10 Channels labeled from ADC2_1 to ADC2_7, while ADC2 has 10 Channels labeled from ADC2_0 to ADC2_9. The ADC output value ranges from 0 to 4093 at 12-bit resolution.
esp32, esp32 pinout, esp32 chip, esp32 wifi module, esp32 basics, esp32 featues
DAC Pins in ESP32
DAC Pins: ESP32 features 2 distinct 8-bit digital-to-analog converters(DAC1 and DAC2) for translating digital values to analog signals. The DAC function is attached to below two GPIO pins:
ESP32 low power
DAC1-GPIO25
DAC2-GPIO26
The DAC employs a power supply as an input reference voltage and features an internal resistance network.
esp32, esp32 pinout, esp32 chip, esp32 wifi module, esp32 basics, esp32 featues
PWM Pins in ESP32
PWM Pins: ESP32's PWM controller has 16 independent PWM channels with configurable frequency and duty cycles. Any GPIO pin can be used as a PWM pin.
PWM pulses are used to control the speed of motors or the brightness of LEDs. You can configure the frequency, channel, GPIO pin, and duty cycle of the PWM signal.
esp32, esp32 pinout, esp32 chip, esp32 wifi module, esp32 basics, esp32 featues
SPI Pins in ESP32
SPI Pins: ESP32 has three SPI blocks that operate in both master and slave modes, named SPI, HSPI, and VSPI.
ESP32 low power
Among these 3 blocks, SPI is used as an interface to flash memory. So, we are left with HSPI and VSPI for normal use:
VSPI: ESP32 VSPI Pins are GPIO23 (MOSI), GPIO19 (MISO), GPIO18 (CLK) and GPIO5 (CS) used for SPI-1 communication.
HSPI: ESP32 HSPI Pins are GPIO13 (MOSI), GPIO12 (MISO), GPIO14 (CLK) and GPIO15 (CS) used for SPI-2 communication.
esp32, esp32 pinout, esp32 chip, esp32 wifi module, esp32 basics, esp32 featues
I2C Pins in ESP32
The ESP32 has two I2C interfaces. The SCL and SDA pins of both I2C interfaces can be assigned by a user in the program. The default I2C pins are:
SDA-GPIO21
SCL-GPIO22
esp32, esp32 pinout, esp32 chip, esp32 wifi module, esp32 basics, esp32 featues
ESP32 Capacitive Touch Sensors
ESP32 has 10 capacitive touch-sensing GPIO Pins(T0 to T9), which get electrostatically charged when a finger touches the respective GPIO pin.
ESP32 low power
Without any additional hardware, these touch GPIOs can be utilized to make capacitive touchpads. Variations in capacitance are evident.
esp32, esp32 pinout, esp32 chip, esp32 wifi module, esp32 basics, esp32 featues
RTC GPIO
ESP32 has 18 Low-Power RTC GPIO Pins(RTCIO0 to RTCIO17) used to wake up the ESP32 board from deep sleep mode.
esp32, esp32 pinout, esp32 chip, esp32 wifi module, esp32 basics, esp32 featues
Serial: Two serial pins are represented on boards as Tx and Rx. The Tx is used to transmit serial data while Rx is used to receive serial data.
esp32, esp32 pinout, esp32 chip, esp32 wifi module, esp32 basics, esp32 featues
External Interrupts: All GPIO pins can be used as external interrupts.
ESP32 Datasheet
Before you incorporate this device into your electrical project, it’s wise to go through the datasheet of the component that features the main characteristics of the device. You can click the link given below to download the ESP32 datasheet.ESP32 low power
Now, let's have a look at the features of ESP32:
ESP32 Features
Here are the main features of ESP32 IC:
ESP32 has built-in integration of both WiFi and Bluetooth dual-mode.
ESP32 has 34 programmable GPIOs present on the chip.
ADC is of 12-bit SAR and can support up to 18 channels.
DAC is 8-bit and it has 2 DAC channels.
ESP32 also has 10 touch sensors embedded in it.
ESP32 also has a Hall sensor in it.
It supports 4 SPI channels.
It also has 2 I²S channels.
ESP32 has 2 I²C ports in it.
It supports 3 UART channels.
It also has 1 host(SD/MMC/SDIO) and 1 slave(SDIO/SPI).
ESP32 also supports the Ethernet MAC interface with dedicated DMA and IEEE 1588 support.
It supports Two-Wire Automotive Interface (TWAI®, compatible with ISO11898-1)
LED PWM up to 16 channels
A few of ESP32's key features are discussed below in detail:
ESP32 WiFi Key Features
Wireless Networking Standard: 802.11 b/g/n
Wireless Standard: 802.11 n (2.4 GHz), up to 150 Mbps
WiFi Multimedia(WMM)
WiFi Aggregation: TX/RX A-MPDU, RX A-MSDU
Immediate Block ACK: suitable for high bandwidth & low latency traffic.
Automatic Beacon monitoring (hardware TSF)
Simultaneous support for SoftAP, Infrastructure Station and Promiscuous modes.
Diverse Antenna
Defragmentation to smoothen the data.
Supports 4 virtual WiFi Interfaces.
ESP32 Bluetooth Key Features
Compliant with Bluetooth v4.2 BR/EDR
Class-1, Class-2 and Class-3 transmitters without external power amplifier
Increased Power Control
Transmission Power: +12 dBm
BLE sensitivity: –94 dBm (NZIF receiver)
Adaptive Frequency Hopping (AFH)
Standard HCI supports SDIO/SPI/UART
High-speed UART HCI, up to 4 Mbps
Bluetooth 4.2 BR/EDR BLE dual-mode controller
CVSD and SBC for audio codec
Classic BT and BLE support Multiple connections.
It can advertise and scan simultaneously.
Bluetooth Piconet and Scatternet
ESP32 low power
ESP32 Microcontroller Key Features
ESP32 uses an Xtensa® single-/dual-core 32-bit LX6 microprocessor(s) .
It supports data rates up to 600 MIPS (200 MIPS for ESP32-S0WD/ESP32-U4WDH)
It has a Flash Memory of 448 KB.
It has an SRAM memory of 520 KB.
16 KB SRAM in RTC
QSPI supports multiple flash/SRAM chips.
ESP32 Clocks & Timers Key Features
ESP32 has a calibrated 8MHz crystal oscillator (internal)
Calibrated RC oscillator (internal)
External 2 MHz ~ 60 MHz crystal oscillator (40 MHz only for Wi-Fi/BT functionality)
External 32 kHz crystal oscillator for RTC with calibration
Two timer groups, including 2 × 64-bit timers and 1 × main watchdog in each group
ESP32 also has one RTC timer.
RTC watchdog is also present in ESP32.
ESP32 Projects & Applications
ESP32 modules have brought a revolution in embedded and especially IoT projects. As these boards are small-sized,
low-powered and support both WiFi & BT, thus are gaining popularity in IoT-based handheld devices.
A few applications of the ESP32 module are as follows:
Used in Network projects.
Employed for beginner-level DIY projects.
Employed in the prototyping of IoT devices.
Used in cloud-based smart security projects.
Used in low-power battery-operated applications.
That was all about the Introduction to ESP32 module. If you have any questions, you can approach me in the comment section below. I’ll help you according to the best of my expertise.
You’re most welcome to share your valuable feedback and suggestions around the content we share
so we keep coming up with quality content customized to your exact needs and requirements. Thank you for reading the article
Latest release
-
11 Nov 2025 15:29:14 GMT
ESP32 Pinout, Datasheet, Features & Applications
-
11 Nov 2025 15:10:16 GMT
What is industrial pcb production?
