What Is Advantages and Disadvantages of Tantalum Capacitors

Among the dazzling array of electronic components, tantalum capacitors occupy a special place with their unique properties.

It's not as ubiquitous as ceramic capacitors or as bulky as electrolytic capacitors, but it plays an irreplaceable role in many demanding occasions.

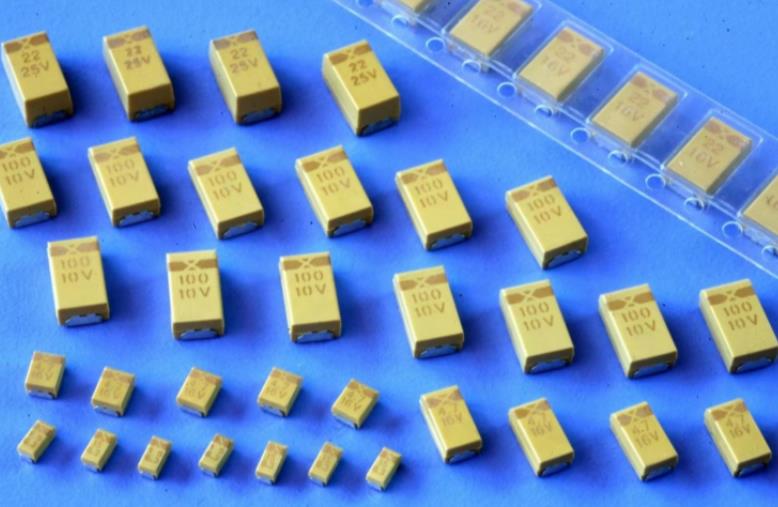

In simple terms, tantalum capacitors are a type of capacitor made of metal tantalum as the main material.

Its core is a porous block made of tantalum powder sintered,

which uses its huge surface area to chemically generate an extremely thin tantalum oxide insulating film as the medium.

This film is extremely stable and is key to the excellent properties of tantalum capacitors.

High capacity-to-volume ratio: Under the same capacitance and withstand voltage value, the volume of tantalum capacitors can be much smaller than ordinary aluminum electrolytic capacitors.

This is essential for modern electronics where space is at a premium.

Excellent stability: its capacitance value does not change significantly with temperature and time, and its performance is very reliable. In particular,

 its ESR (equivalent series resistance) remains low and stable over a wide temperature range, which is beneficial for power filtering.

Fear of overvoltage and backvoltage: Tantalum capacitors are very weak in their ability to withstand overvoltage.

Even a momentary voltage spike above its rated voltage can cause it to fail. Reverse voltage is strictly prohibited.

Failure mode: Once overvolted or improperly used, the tantalum oxide dielectric layer may be broken down,

leading to a short circuit and triggering high temperatures or even smoke and fire. Therefore,

 tantalum capacitors must be used with strict voltage derating rules

(e.g., models with a voltage rating twice as high as the operating voltage in a real circuit) and series safety resistors to limit the instantaneous current.

Power filtering: Provide stable and clean power supply for high-performance chips such as CPU, GPU, ASIC, etc.,

and is the "anchor" for the stable operation of circuits.

Tantalum capacitors are a "contradiction between performance and risk".

It offers immense capacitance and exceptional stability in a smaller size, making it the darling of high-end electronic devices.

But this high performance also comes with strict operating conditions. Designers must fully understand its characteristics and provide it with a stable and safe working environment,

just like a talented but bad-tempered expert, in order to exert the powerful energy of a "little steel cannon".
