Designed For Raspberry Pi Series
Standard Raspberry Pi 40PIN GPIO Header, Customized For Raspberry Pi Series Boards
External Power Supply Support
Onboard External USB-C 5V DC Power Port
Combined with the Raspberry Pi USB power source, it is capable of connecting more USB loads, even the high-power disk device

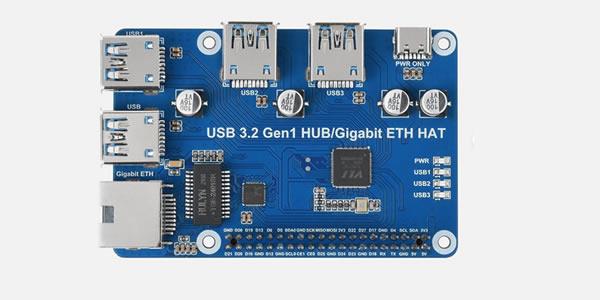

Raspberry Pi GPIO header for connecting Raspberry Pi
USB 3.2 Gen1 HUB input connects to Raspberry Pi USB port
USB 3.2 Gen1 extended ports USB1~USB3
Gigabit Ethernet port up to 1000Mbps data rate
PWR ONLY port for external USB-C 5V DC power input
VL817-Q7 USB HUB chip
RTL8153B USB 3.0 to Gigabit Ethernet converter
TGE-2401SR Gigabit Ethernet transformer
PWR power indicator
USB1~USB3 indicator for each USB port
MX25L512EOI-10G FLASH chip
